Extended scale functions

High accuracy

With a max. tolerance of 0,1% of the load on the forks the RAVAS-3200 is suitable for use in warehouses and production environments, for example for mixing and batching.

Li-ion battery pack

The RAVAS-3200 is powered by a Li-ion battery for 75 working hours. This can be recharged with a separate charger.

Option: OIML

Optionally, the weighing hand pallet truck RAVAS-3200 can be OIML approved for commercial transactions. This allows you to invoice your customer by weight.

Option: printer

The RAVAS-3200 can be equipped with a built-in printer that prints weights, totals, a numerical ID, date/time and article or order number.

De RAVAS-3200 weighing pallet truck

A top quality weighing hand pallet truck with additional weighing functions available. Suitable for use in both warehouses and production environments. View the extensive benefits, functions, technical specifications and options.

Download the RAVAS-3200 Technical Specifications

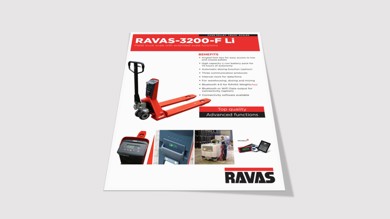

RAVAS 3200 Technical Specification EU
Weighing capacity
2.000 kg
Graduation multirange
0-200 kg: 0,2 kg, 200-500 kg: 0,5 kg, 500-2.000 kg: 1 kg
Max. tolerance
0,1% of the load lifted
Protection class
Load cells IP67, indicator IP65
Dimensions in mm
Fork length: 1150, fork width: 170, minimum fork height: 90, space underneath fork: 22, maximum fork height: 180, lifting height: 90, width over forks: 540
Automatic and manual zero correction, gross/net weighing, automatic and manual tare, totalling with sequence number, Bluetooth 4.0 for RAVAS WeightsApp, automatic switch-off after 30 minutes of non-use, kg/lb toggle
Legal for trade version, OIML III, built-in thermal printer, relay setpoint switch for automatic dosing, multirange graduation 0,1/0,2/0,5 kg, stainless steel fork shoes, stainless steel or galvanized truck, pivoting indicator: readout from all angles during dosing, footbrake or handbrake, different fork dimensions, different steering or loading wheels
