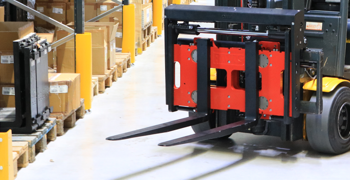

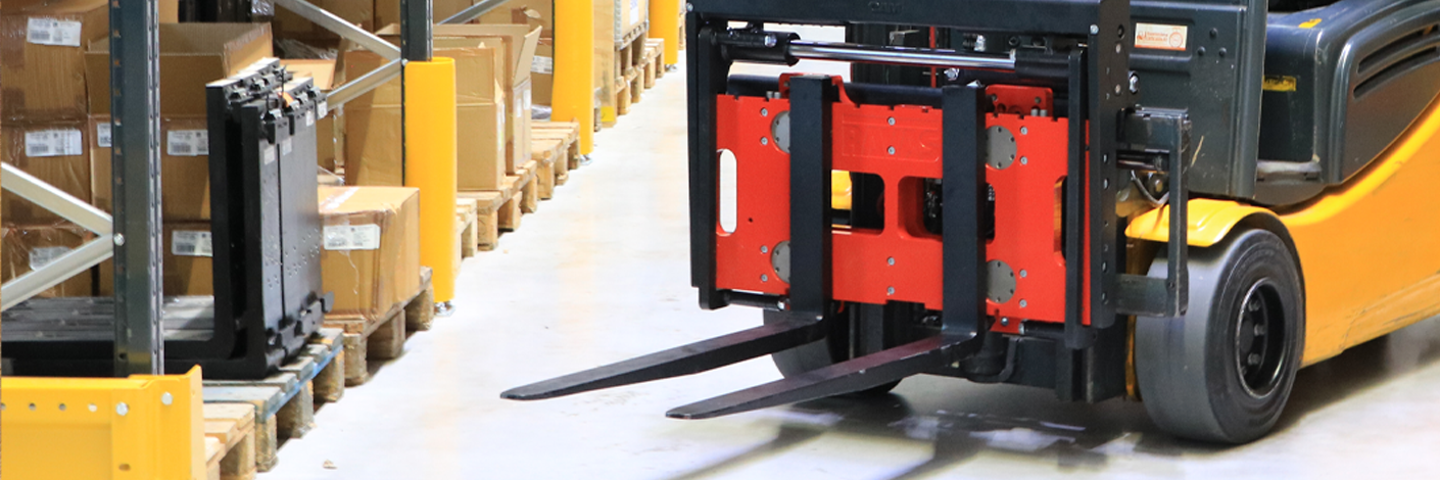

RAVAS iCP Performance
RAVAS iCP Performance
The RAVAS iCP Performance sets a new standard in mobile weighing with its lightweight, slim design, best-in-class weighing accuracy, and advanced safety features. It integrates seamlessly with WMS, TMS, and ERP and is optionally available as a fully automatic weighing solution, minimising errors and maximising efficiency.
The new standard in mobile weighing
RAVAS iCP Performance
Traditional forklift weighing systems only tell you how much a load weighs. The RAVAS iCP Performance goes further—providing real-time insight into how the load is distributed across the forks. Operators can instantly see whether a load is safely positioned and receive active, real-time warnings if its center of gravity becomes unsafe. Maintenance and calibration have also been significantly simplified.
Calibration is performed electronically using the RAVAS RedBox, making the process faster, easier, and far less dependent on specialized technicians. Calibration can also be completed using the free RAVAS Indicator App on any Android device, providing added flexibility and convenience on the warehouse floor.
Together, these advancements help reduce operating costs, minimize forklift downtime, and keep operations moving efficiently.
Key Advantages
-
Revolutionary mechanical design
-
Fully automatic weighing while driving
-
Exceptional accuracy
-
Seamless data integration
-
Built-in safety features
-
Faster, more precise pallet positioning
- NTEP-certified
New design with maximum lifting capacity

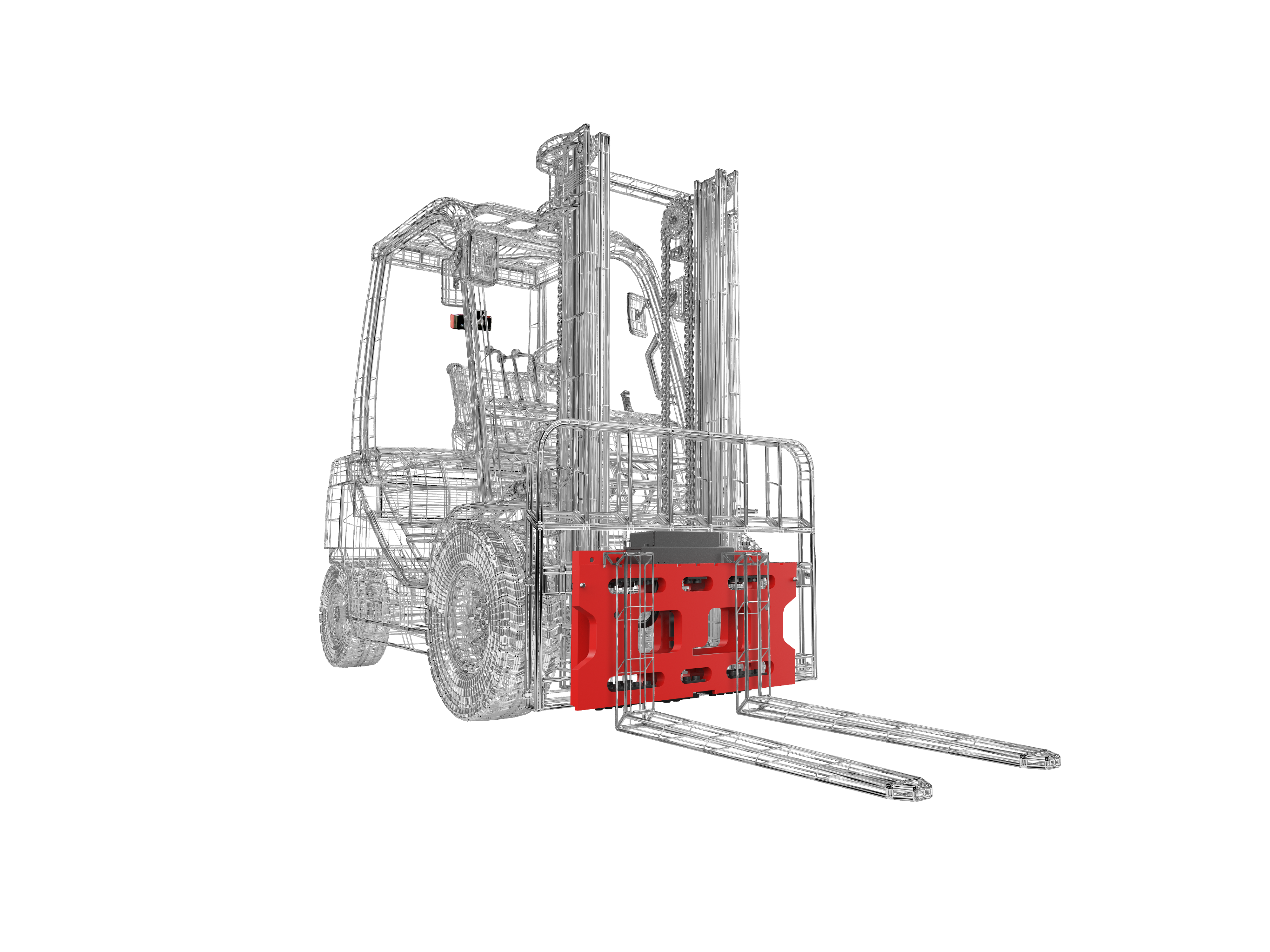

Traditional forklift weighing systems and add-on attachments often introduce trade-offs. Added weight and increased installation depth can reduce lifting capacity and limit the operator’s line of sight. The RAVAS iCP Performance addresses these challenges at the source with a completely reengineered mechanical design.
Its lightweight, slim-profile construction preserves the forklift’s residual capacity, allowing operators to lift more with the same truck compared to conventional systems. The streamlined frame is engineered to improve visibility of the pallet, load, and pallet corners—without the operator needing to lean out of the cab—enhancing both safety and productivity.
All electronics are fully integrated into a durable metal frame while maintaining wireless connectivity. This design minimizes exposed cabling, reduces the risk of cable damage, and helps prevent costly downtime. As with all RAVAS solutions, the iCP Performance is built to meet high safety standards and deliver long-term reliability in demanding warehouse and industrial environments.
Modular functions
The RedBox display developed by RAVAS not only shows the load weight but also its position on the forks. Visual and sound warnings immediately indicate when the load is outside safe limits, significantly increasing safety during use.
Full connectivity
Wireless communication enables the system to connect to WMS, TMS, and ERP platforms. Weight information, timestamps, product codes, and user data are automatically recorded, eliminating the need for manual entry and reducing errors.
Capacity loss
Our latest weighing solution for forklift trucks is designed to minimise capacity loss. Thanks to the new 2D load cells, measurements are more accurate and stable. The system determines the load centre of gravity in real time, ensuring optimal control and improved safety.
Weighing capacity
Graduation
System Tolerance
WiM Max. Driving Speed
Power supply
Options
Additional equipment
RAVAS iCP Performance
For industrial use
Weigh-in-Motion Technology
RAVAS Weigh-in-Motion technology enables fully automatic weighing while the forklift is in motion. Using advanced sensor technology and proprietary algorithms, weight is continuously measured as the truck drives—without requiring any additional operator action. Weighing becomes a seamless part of the material-handling process, eliminating stops, delays, and workflow interruptions.
Fully Automatic Operation
With RAVAS Weigh-in-Motion, weighing is completely automated and fully calibrated. Even while driving, the system delivers accuracy within 2 lbs without operator input. This significantly boosts productivity while minimizing the risk of weighing errors and manual mistakes.
Built for Heavy-Duty Use
The RAVAS iCP Performance is engineered for intensive use in demanding warehouse, logistics, and industrial environments. Its robust construction, with multiple reinforced bends, absorbs shock and evenly distributes load forces across the load cell. Because the load cell has no moving parts, wear is minimized, and long-term durability is maximized.
Precision You Can Rely On
The iCP Performance uses a single load cell with 0.4 percent accuracy, delivering highly precise, consistent weighing results. Its innovative design ensures excellent linearity, maintaining both heel-to-toe and fork-to-fork accuracy.

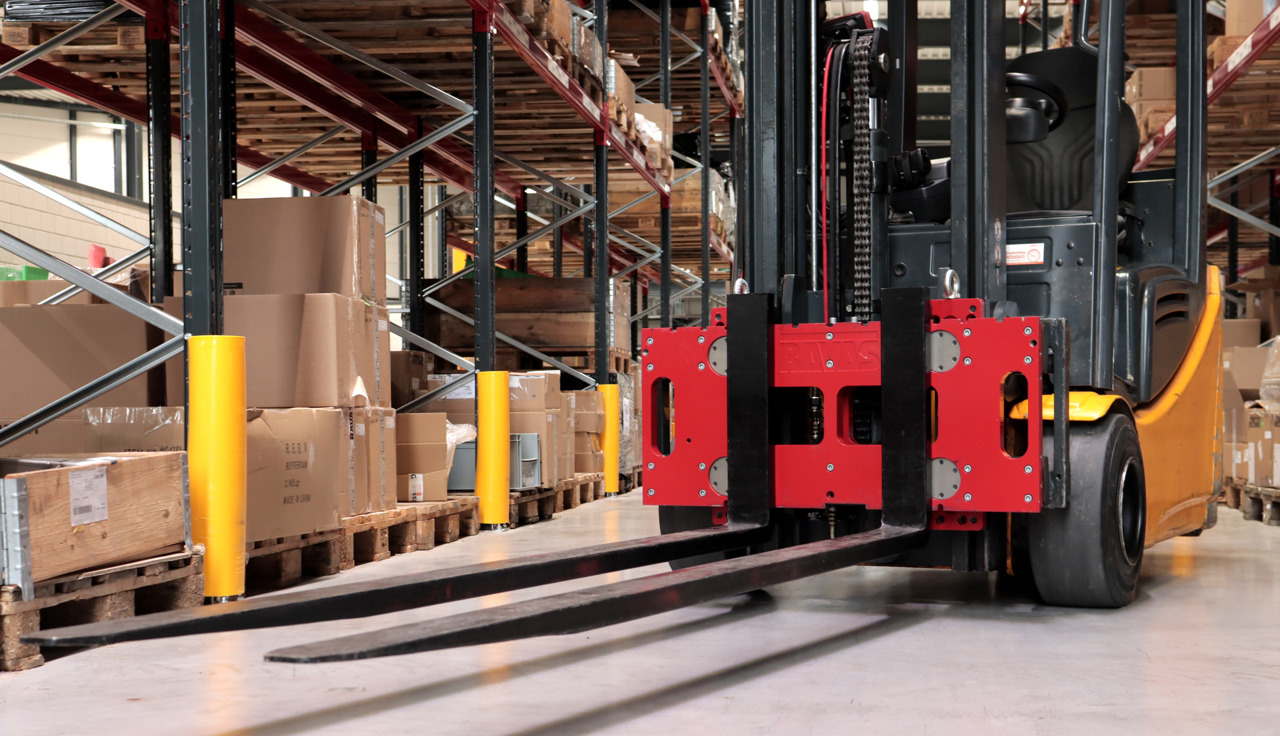

Smart filtering and dynamic compensation algorithms maintain accuracy even on forklifts equipped with forks up to 6.5 feet long. The system automatically compensates for travel movement, mast position, and uneven load distribution—an industry-leading capability in mobile weighing systems.
Fits Virtually Any Forklift
The RAVAS iCP Performance can be installed on nearly all forklift models without structural modifications. This preserves the forklift’s versatility and enables weighing, transport, and order picking in a single, efficient operation.
Designed for Safety
For maximum safety and protection, the iCP Performance is secured with Grade 8 steel bolts that firmly anchor the system and safeguard the load cell against overload. The load cell is engineered to withstand overloads of up to 300 percent, providing an additional layer of reliability in high-demand operations.
