Main benefits

Basic, wireless forklift truck scale

Compact fork dimensions

RAVAS exclusively develops all electronics and power components for the iForks concept, which is why they are resistant to rough use and extremely compact, keeping the fork dimensions very close to those of standard truck forks and making sure that the user does not lose any handling performance.

Basic scale functions

The iForks Economy 2.0 weight indicator in the cabin shows the weight of the load on the forks and offers a basic range of weighing functions, such as gross/net weighing, total weight per shipment. iForks offers digital calibration technology, which implicates that the scale can be digitally adjusted via the keys of the indicator. Quickly and accurately.

Inbound and outbound goods

The driver display in the cabin shows the weight of every load lifted in 2 kg increments. Scale functions include gross and net weighing and total weight per shipment. This makes iForks Economy 2.0 ideal for checking inbound deliveries and determining shipping weights directly on the forks of your lift truck.

80 hours of real use

Each scale fork communicates the weight lifted with the weight indicator in the cabin via Bluetooth, completely wireless. The weighing system is powered by robust, exchangeable battery modules that provide 80 hours of real use. Since the indicator switches off automatically, the batteries are charged only once every few weeks or even months.

How to Calibrate iForks

iForks are mobile weighing scales for forklifts designed to provide real-time data to the operator. To properly using the benefits of iForks Bluetooth technology and mobile weighing capabilities, the iForks need to be properly calibrated. Here is a step-by-step guide to properly calibrating your iForks so they can 100% set up for your operation.
How to Properly Calibrate iForks

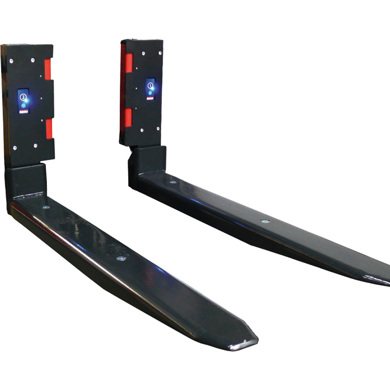

Iforks Economy 690
Weighing capacity
2,500 kg
Graduation
2 kg steps from 0-2,500 kg
System tolerance
0.2% of the scale capacity
Display
LCD, digit height 18 mm, adjustable backlight
Protection class
IP65/NEMA 4
Dimensions in mm
Fork length: 1150, fork width: 133, fork height: 58
Functionality
Automatic and manual zero correction, gross/net weighing, automatic and manual tare weight entry, totaling with sequence number, data output for printing, error messages in the display, auto shut-of function for optimal battery life, overload protection 200%
Options
Thermal (6V) printer, extra set of the rechargeable fork battery pack, FEM 2B forks, the indicator on adjustable RAM support
